E-Paper Digital Signage: How E Ink Displays Work and When They Beat LCD

The physics in one paragraph

E Ink (e-paper) is a bistable display. Tiny charged pigment particles inside microcapsules move under an electric field to form an image, then stay in place when power is removed. That single fact — the image is retained without power — is the reason e-paper deployments look so different from LCD: a tag can run for years on a coin cell, a public-information panel only "wakes" when content changes, and a sun-facing kiosk reads like print rather than washing out.

Where e-paper beats LCD

• Electronic shelf labels (ESL) — coin-cell battery, image retained between refreshes, deployed at store scale (the largest retail rollouts now run across whole estates).
• Public-information panels — wayfinding, room booking, transit timetables, hospital signage. Content updates infrequently, so per-pixel power use is effectively zero.
• Outdoor / sunlight-readable signage — reflective display, no backlight glare.
• Quiet, fan-free environments — hospitals, libraries, museums.
• E-note / digital paper — meeting-room note pads and reference panels where the device is read for hours.

Where LCD still wins

If you need fast video, frequent animation, full motion or a colour gamut close to a phone screen, LCD/OLED still wins on refresh rate and colour. Modern colour e-paper (e.g., E Ink Spectra 6 with six pigments — red, green, blue, yellow, black, white) covers signage colour well but is not a substitute for video.

How to scope an e-paper deployment

1. Content frequency — how often does the screen actually need to update? E-paper shines when updates are minutes-to-days apart.
2. Power source — battery, USB-C, PoE, mains? E-paper opens up battery-only deployments LCD can't touch.
3. Size and resolution — ESL is sub-3" at one end; Avalue's EPD-3150 is a 31.5" 2560×1440 Spectra 6 colour signage display at the other.
4. Connectivity — Wi-Fi or SD for signage updates; gateway-based RF for ESL.
5. Environment — temperature range and IP rating for the install location.

Avalue's e-paper lineup

Avalue's Digital Paper portfolio covers three families:

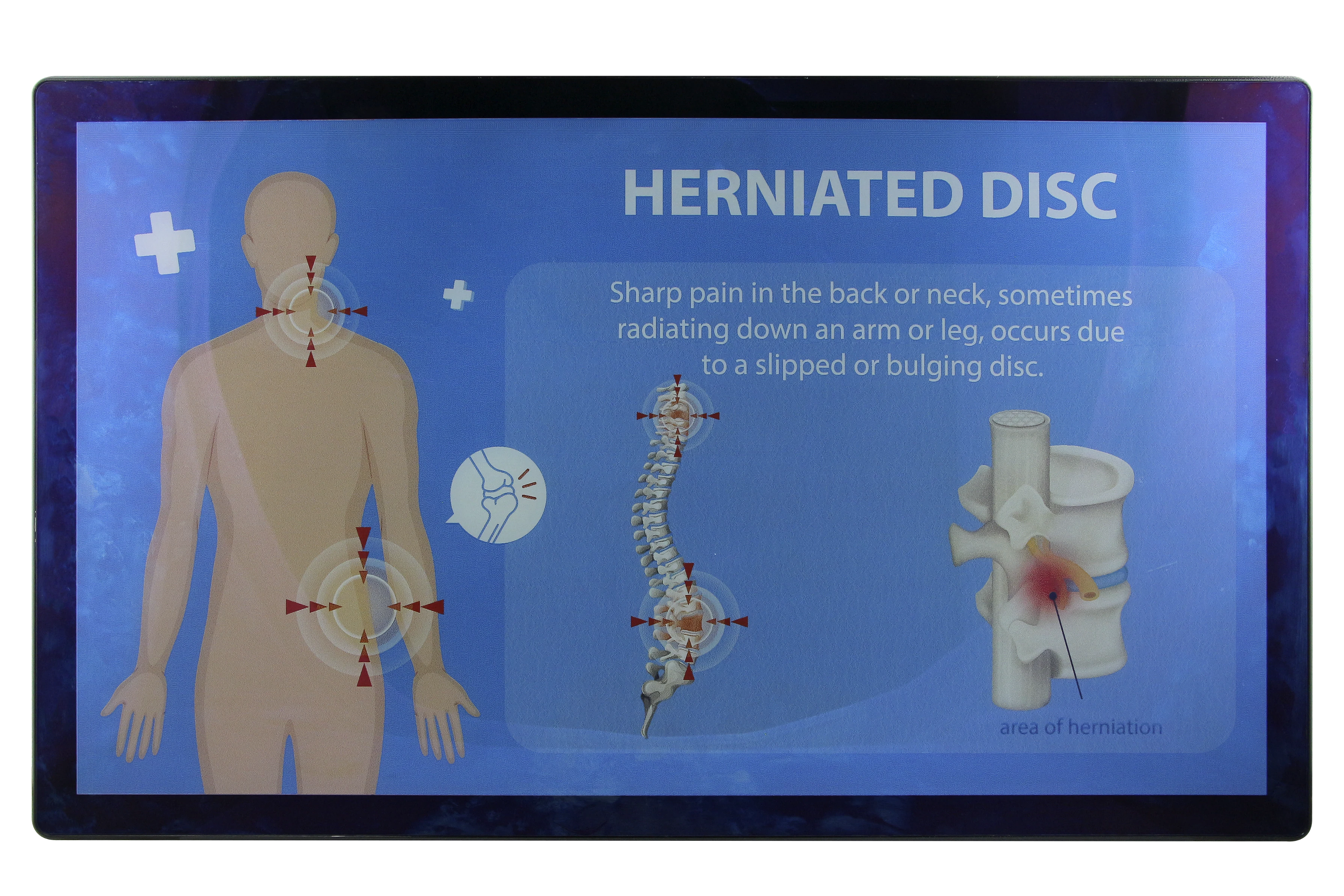

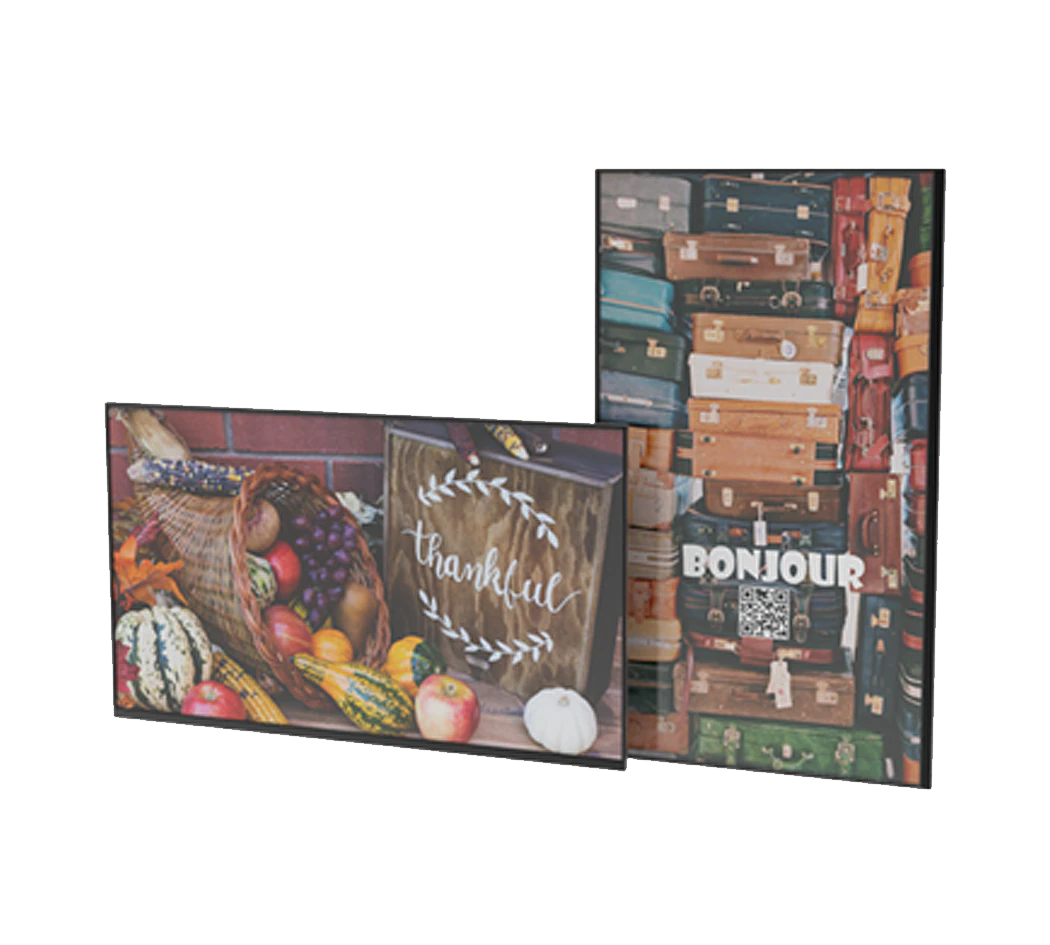

• Public Display Solution — large-format colour signage including the 31.5" EPD-3150 (Spectra 6, Wi-Fi/SD content, USB-C +12V, fanless 0–50°C) and the 25.3" EPD-2530.
• Outdoor Display Solution — sunlight-readable e-paper for street and transit signage.
• eNote — digital paper notebooks for meeting and reference use.

Where TSL Automation fits

TSL Automation supplies Avalue Digital Paper products worldwide. Contact our team with your size, refresh frequency, power and connectivity requirements and we'll match the right family.
