What are the key features of the EPM-1604 embedded peripheral?

The EPM-1604 provides high-speed digital outputs, isolated channels, and compact design for embedded applications.

What applications is the EPM-1604 suitable for?

It is suitable for machine control, signal switching, and automation systems.

What are embedded peripherals and what are their typical applications?

Embedded peripherals are modular I/O and interface boards designed to expand the capabilities of embedded and industrial systems. They are used in automation, data acquisition, process control, and machine monitoring.

What are the advantages of using embedded peripherals?

They provide flexible I/O expansion, industrial-grade reliability, and easy integration with a wide range of embedded platforms.

What is the typical power input for embedded peripherals?

Most embedded peripherals support wide voltage input ranges (e.g., 9-36V DC) and are designed for low power consumption.

What communication interfaces are supported by embedded peripherals?

Common interfaces include RS-232/422/485, USB, Ethernet, CAN, and GPIO, depending on the model.

Are embedded peripherals compatible with standard industrial protocols?

Many models support protocols such as Modbus, CANopen, and EtherCAT for seamless integration.

What is the operating temperature range for embedded peripherals?

Most models support industrial temperature ranges, typically -40°C to +85°C.

How do I install an embedded peripheral in my system?

Most peripherals support DIN-rail, panel, or board-level mounting. Refer to the product manual for detailed installation steps.

What drivers or software are required for embedded peripherals?

Drivers and SDKs are usually provided for Windows and Linux platforms. Check the product page for downloads and documentation.

How do I connect embedded peripherals to my host system?

Use the appropriate interface cable (USB, serial, Ethernet, etc.) and ensure correct configuration in your system BIOS or OS.

What should I do if my embedded peripheral is not detected?

Check power supply, cable connections, and ensure drivers are properly installed. Try connecting to a different port or system if possible.

How can I update the firmware on my embedded peripheral?

Refer to the product manual for firmware update instructions. Updates are typically performed via USB or serial interface using vendor tools.

What steps should I take if I experience communication errors?

Verify interface settings (baud rate, parity, etc.), check for cable or connector damage, and ensure proper grounding and EMC protection.

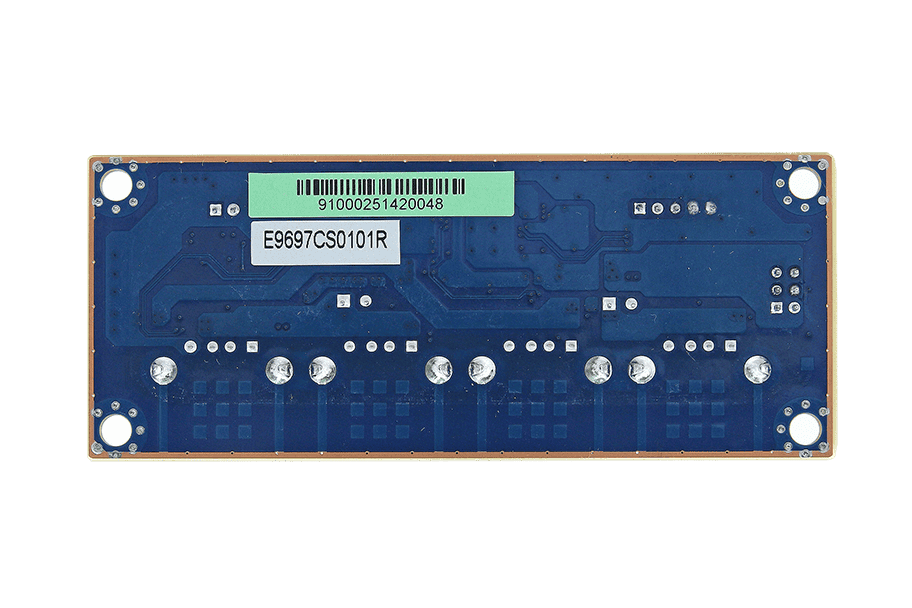

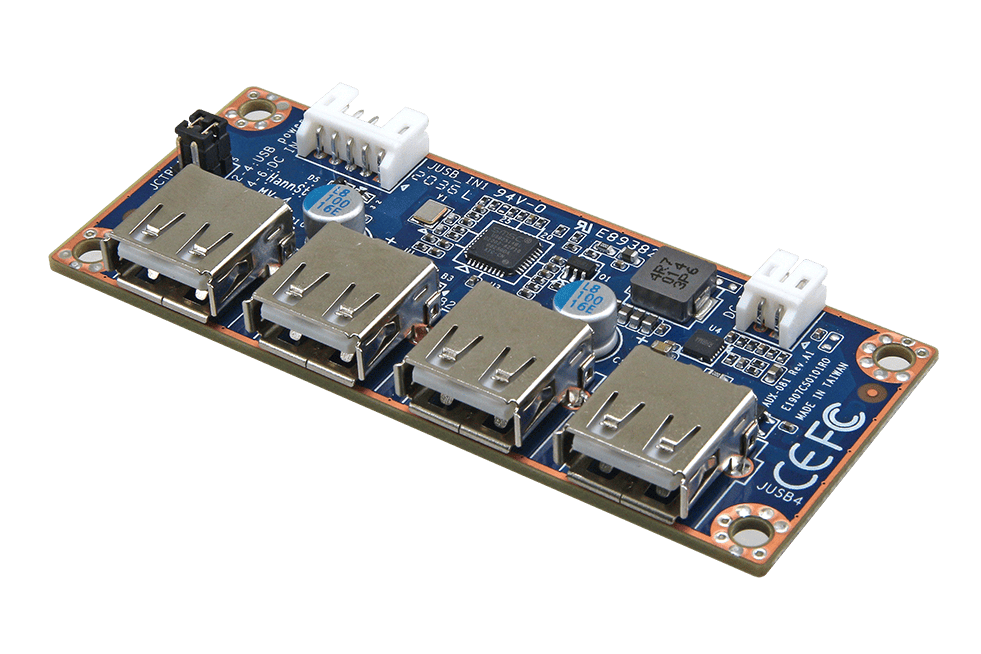

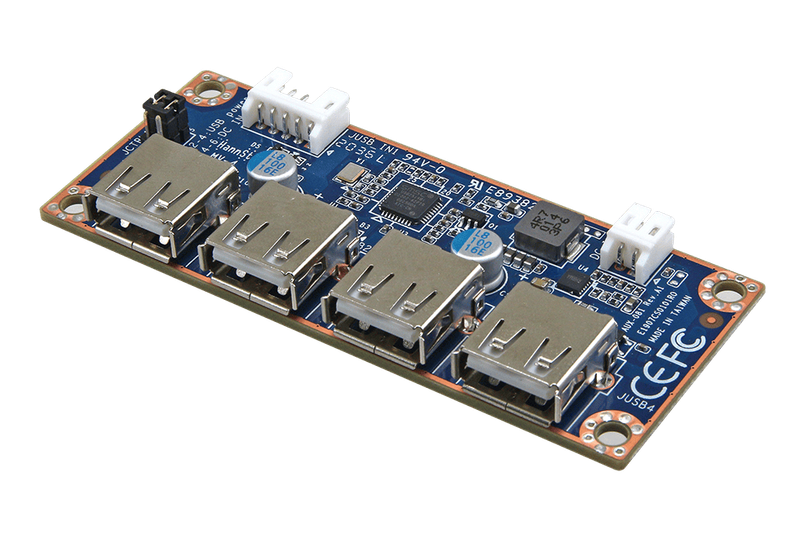

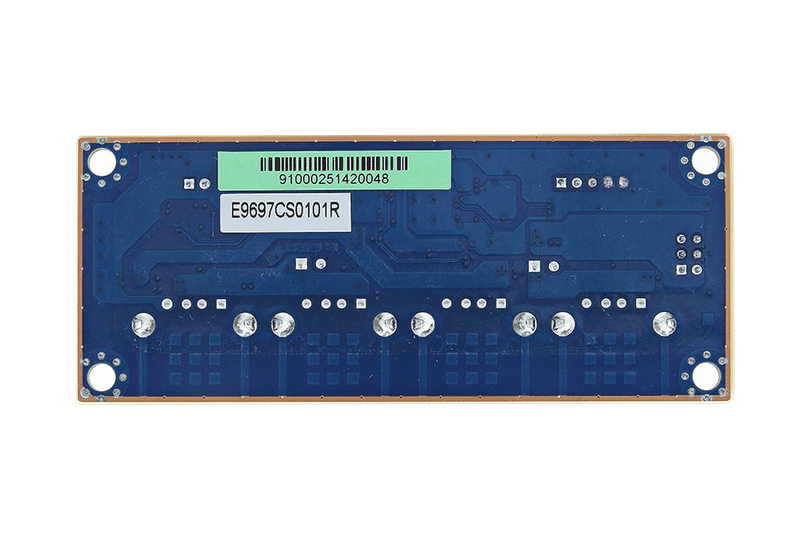

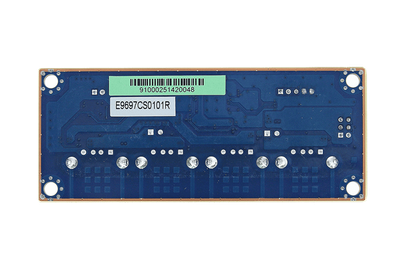

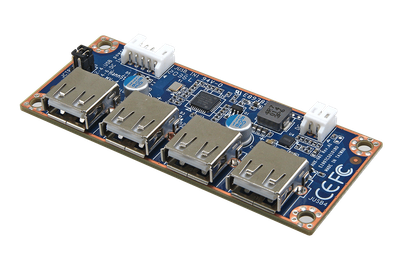

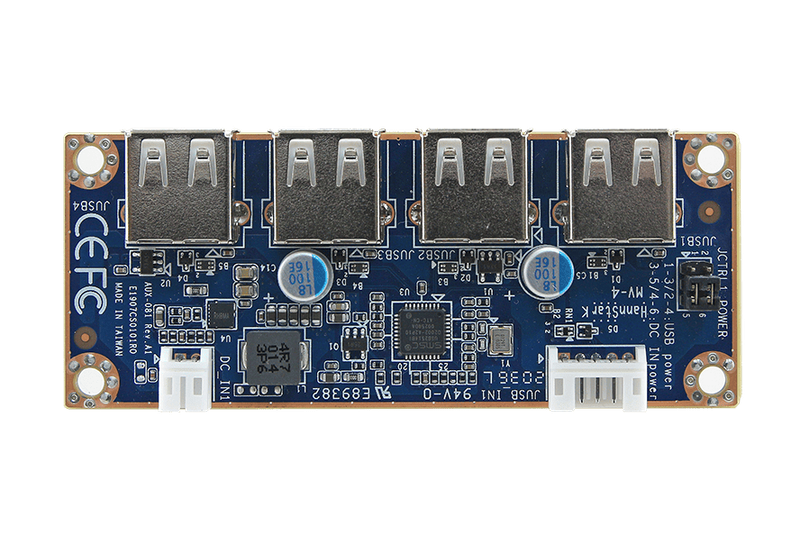

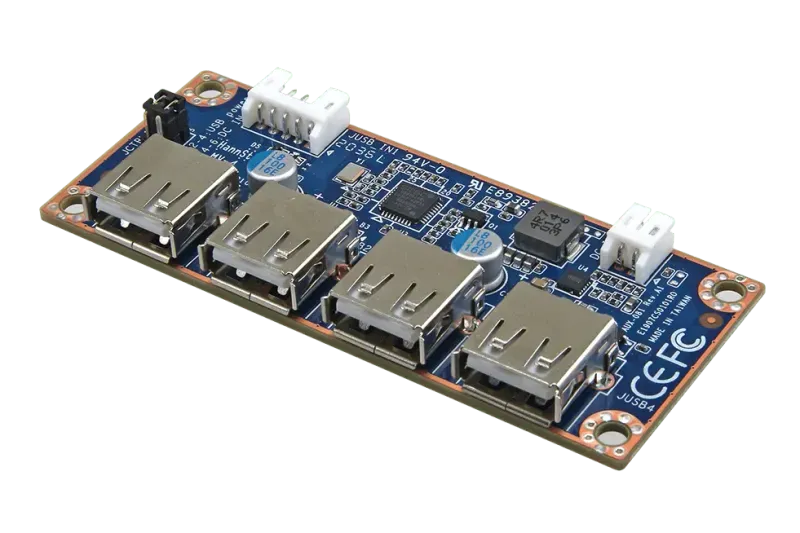

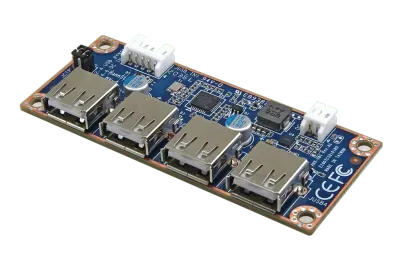

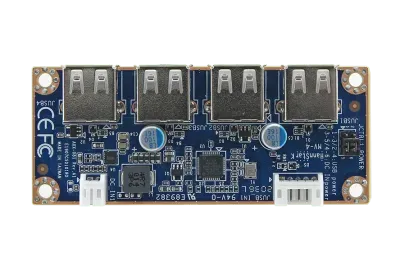

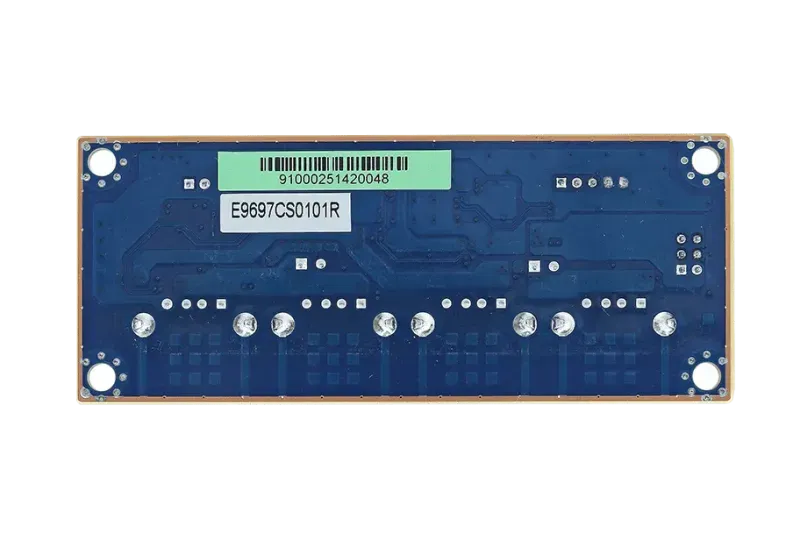

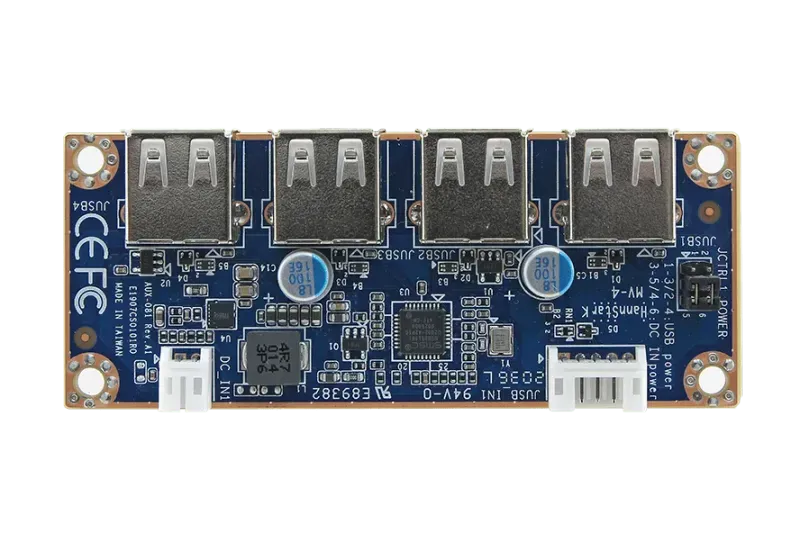

Avalue EPM-1604 4-Port USB 2.0 Hub Module

Product Description

The Avalue EPM-1604 is a compact 4-port USB 2.0 hub module designed for industrial and embedded applications. It provides one USB 2.0 upstream interface and four USB 2.0 Type-A downstream ports, facilitating seamless connectivity for multiple USB devices.

The module supports both +5V and +12V power inputs, selectable via jumper settings, and operates within a wide temperature range of -40°C to +85°C. Its robust design includes vibration resistance of 5G @ 5~500Hz and shock resistance of 10G @ 11ms.

Measuring 80mm x 35mm, the EPM-1604 is an excellent choice for space-constrained environments requiring reliable USB expansion.

Technical Specifications

I/O

Output Interface

4 x USB 2.0(Type A female for down port)

Input Interface

1x USB2.0

Mechanical & Environmental

Dimension

80 x 35(mm)

Form-Factor

USB 2.0

Operating Temp.

-40°C ~ +85°C

Storage Temp.

-40°C ~ +85°C

Vibration Test

5G @5~500Hz

Shock Test.

10G @ 11ms

Software Support

OS

Windows 7/10 and Linux

Ordering Information

Standard Ordering PN:

-EPM-1604-A1R

What is EPM-1604?

The EPM-1604 is a industrial & embedded motherboard manufactured by Avalue, designed specifically for motherboard-embedded-peripheral applications. The Avalue EPM-1604 is a compact 4-port USB 2.0 hub module designed for industrial and embedded applications. It provides one USB 2.0 upstream interface and four USB 2.0 Type-A downstream ports, facilitating seamless connectivity for multiple USB devices. The module supports both +5V and +12V power inputs, selectable via jumper settings, and operates within a wide temperature range of -40°C to +85°C. Its robust design includes vibration resistance of 5G @ 5~500Hz and shock resistance of 10G @ 11ms. Measuring 80mm x 35mm, the EPM-1604 is an excellent choice for space-constrained environments requiring reliable USB expansion.

Key Features & Benefits

Features information coming soon.

Applications & Use Cases

The EPM-1604 is ideal for various industrial automation applications:

Custom industrial computing solutions
Industrial and embedded applications
Industrial automation platforms
Embedded system development
Control system integration
