Manufacturer: Avalue
  • 24" display with PCAP multi-touch
  • 1x SO-DIMM up to 16GB DDR4 SDRAM support
  • Anti-Microbial finish
  • 4x USB3.0, 1x RS-232/422/485, 1x RS-232
  • 2x Intel® Gigabit LAN
  • Isolation USBX2/ COMX2/ LANX2 / HDMI/ mini PCIe by IET module
  • Preset DICOM mode (din 6868-157)
  • LED reading light bar
  • IP-65 on front panel protection

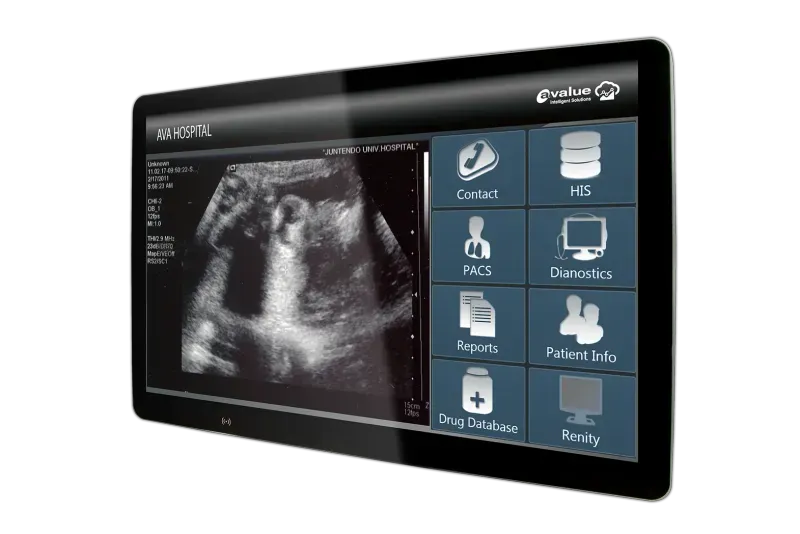

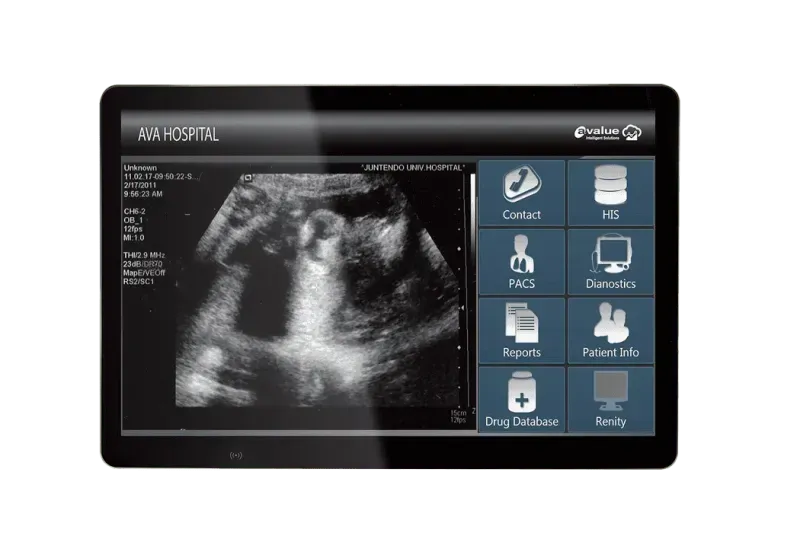

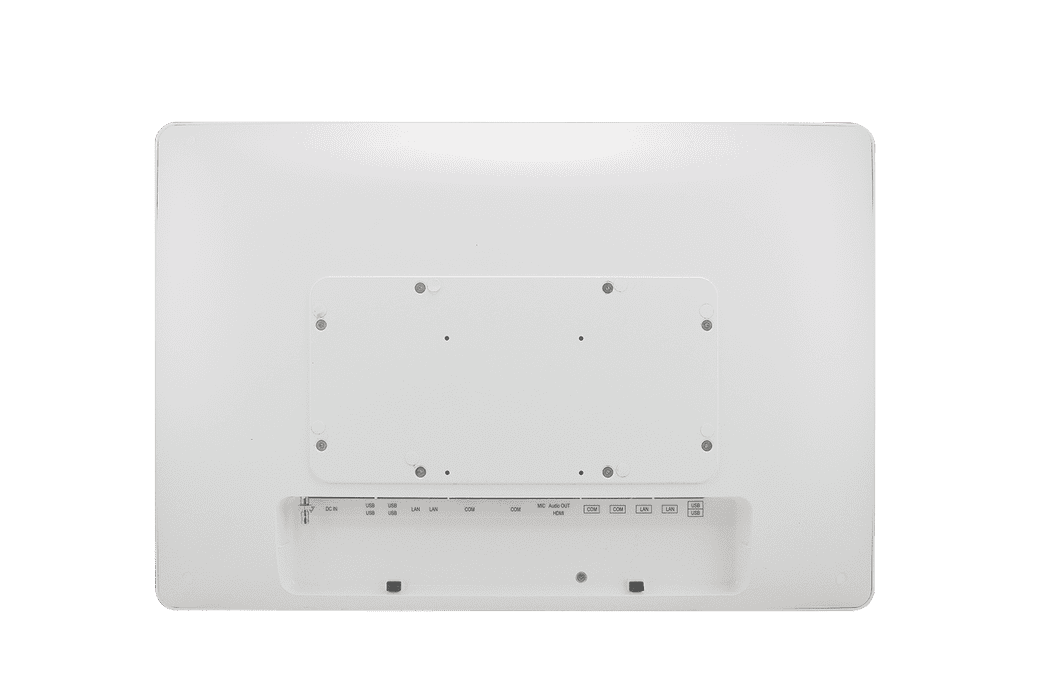

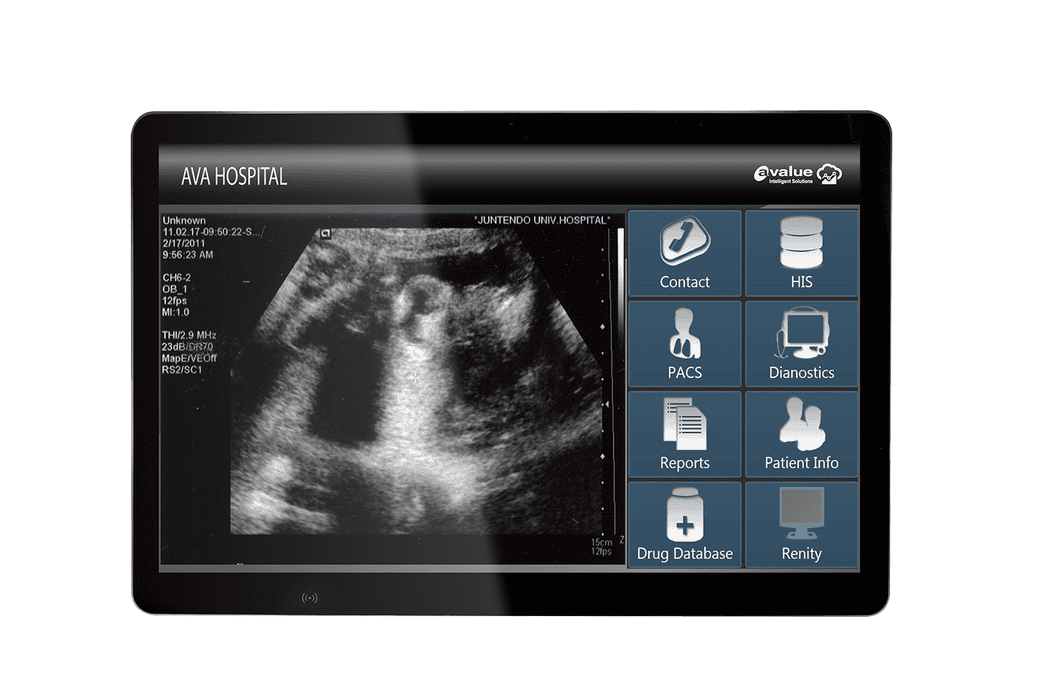

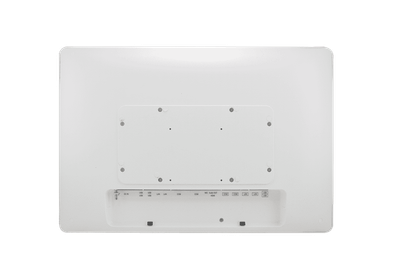

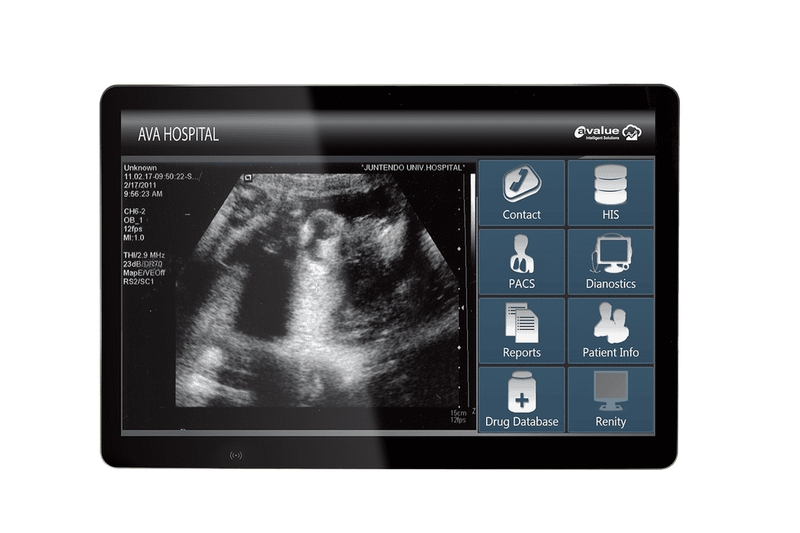

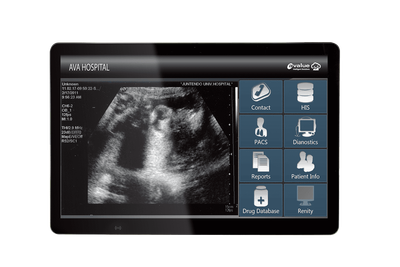

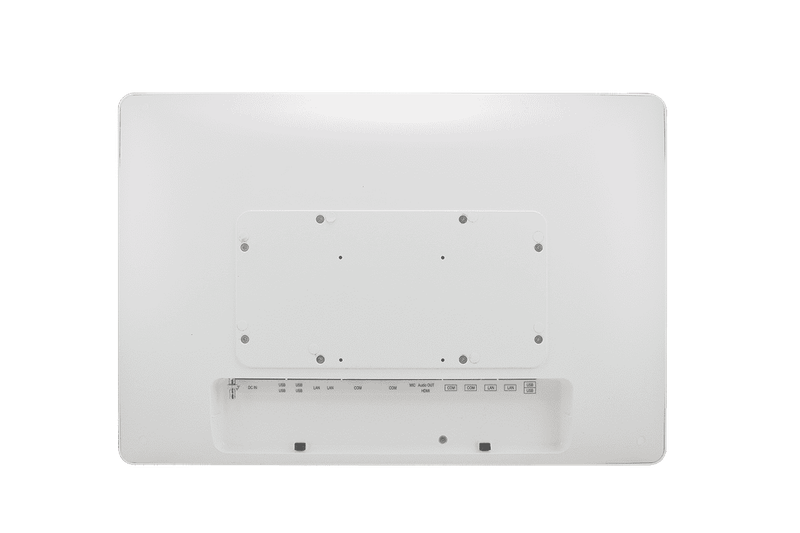

The Avalue HID-2432 is a 24-inch medical panel PC designed for precision imaging in healthcare settings. Powered by the 6th Generation Intel® Core™ i5-6300U processor, it offers robust performance for medical applications. The Full HD PCAP touchscreen supports multi-touch functionality, while the IP65-rated front panel ensures hygiene and durability. Features include DICOM preset mode (DIN 6868-157), LED reading light bar, and anti-microbial finish. With multiple I/O ports, including 4x USB 3.0, RS-232/422/485, and dual Intel® Gigabit LAN, the HID-2432 is a versatile solution for modern healthcare environments.

System Information
Processor

6th Gen Intel® Core™ i5-6300U, 2-Core, 2.4GHz processor

System Memory

One 204-pin SODIMM socket up to 16GB DDR4 2133 SDRAM

TPM

Infineon TPM 2.0

Graphics Controller

Intel® HD Graphics 520

Platform Controller Hub

Integrated in Intel ® Skylake ULT Processor

Expansion
Expansion

1 x Mini PCIe full size (support half size) auto switch for mSATA or mini PCIe, USB 1 x mini PCIe full size (support half size) auto switch for mSATA or mini PCIe, USB (by IET module)

Storage
HDD

2.5 SSD

Other Storage Device

mSATA (optional)

Display
Graphic Chipset

Intel® HD Graphics 520

Spec. & Resolution

HDMI: 3840 x 2160 @ 24Hz (optional by IET module)

Audio
Audio Interface

Audio out and mic in

Audio Codec

Realtek ALC888S

Speaker Output

2 x 0.5W

Software Support
OS

Win10 / Linux

Certification
Certification Information

DIN 6868157 CE, FCC class B UL60601-1 4th edition

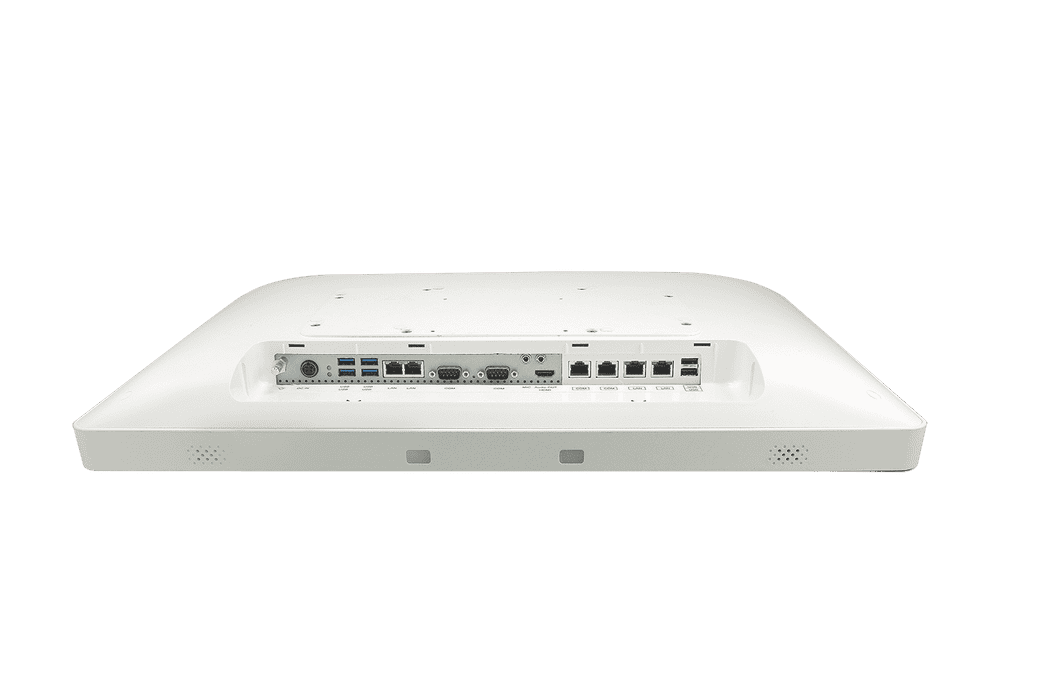

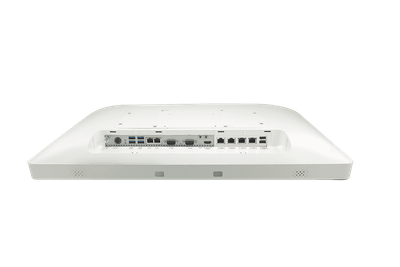

External I/O
USB Port

4 x USB3.0, 4 x USB2.0 by pin header 2 x USB2.0 (isolated 5KV), 1 x USB2.0 by pin header on IET module

LAN Port

1 x Intel ® I219LM Gigabit Ethernet 1 x Intel ® I211AT Gigabit Ethernet 2 x Intel ® I210AT Gigabit Ethernet (isolated 5KV) on IET module

Panel
LCD Size

24"

Resolution

1920 x 1200

Pixel pitch

270 x 270

Luminance

300 cd/m2

Display Type

TFT-LCD

Contrast ratio

1000

Viewing angle

178/178 °

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

89% AR coating

Touch Controller

USB interface, EETI

DICOM compliant

DIN 6868157

LCD Panel

24 TFT-LCD

I/O
Reading light bar

LED type

Camera

2.0M CMOS (optional)

COM Port

1 x RS-232/422/485, 1 x RS-232 1 x RS-232 (isolated 5KV), 1x RS-232/422/485 (isolated 5KV) on IET module

HDMI

HDMI video out on IET module

Data Collection
NFC

USB interface supports ISO 14443-A (optional)

Data Communication
Bluetooth

BT4.0+BLE

WLAN

Mini PCIe interface IEEE 802.11 a/b/g/n/ac draft 2.0 1T1R

DC In/Out Connector
Input Power Connector

4 pin DC Jack

DC In/Out Characteristics
Input Voltage Range

100~240 Vac, 1.5~0.75A, 50~60Hz

Output Voltage Range

+24Vdc, 3.75A max. (90W)

Power Type

AT/ATX

Mechanical & Environmental
Operating Temp.

0°C~ 35° C (32°F ~ 95° F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

0% ~ 90% relative humidity, non-condensing

Weight

10 kg

Vibration Test

With SSD/mSATA: 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

IP Rating

Front Panel IP65 whole unit IPX1

Dimension (W x L x H)

573.8mm x 387.8 mm x 62.5 mm

Construction

Plastic

Surface

Anti-microbial finishing

Component
Adapter

AC/ DC medical power adapter 100~240 Vac, 1.5~0.75A, 50~60Hz Input voltage +24Vdc, 3.75A max. (90W) output voltage

Ordering Information
Ordering Information

HID-2432-630-A2R

24"/PCAP/DICOM/8GBmemory/128GB SSD/CAM/2COM/2LAN/4USB/HDMI/Line out/Mic in/Isolation

Isolation: 2COM (RJ45 type)/2USB/2LAN

WIFI/BT/24V 90W Medical power adapter

Power Cord:


EU E1702031000R


US E1702031833R


JP E170203183CR


UK E170P060380R


AU E1702031831R
