What is the RiVar-1501 POS terminal used for?

The RiVar-1501 is a point-of-sale terminal designed for retail, hospitality, and commercial environments to manage billing, transactions, and daily sales operations.

Is the RiVar-1501 suitable for retail and hospitality use?

Yes, the RiVar-1501 is suitable for retail stores, restaurants, cafes, and hospitality environments that require a reliable POS terminal.

Does the RiVar-1501 support touchscreen operation?

Yes, the RiVar-1501 features a touchscreen interface for quick and intuitive point-of-sale operations.

Can the RiVar-1501 be integrated with POS software?

Yes, it is compatible with standard POS software solutions used for billing, inventory management, and sales reporting.

Is the RiVar-1501 designed for long operating hours?

Yes, it is designed for reliable continuous operation in commercial environments with extended daily usage.

What peripherals are supported by the RiVar-1501 POS terminal?

The RiVar-1501 supports common POS peripherals such as barcode scanners, receipt printers, cash drawers, and customer displays.

Is the RiVar-1501 suitable for compact checkout counters?

Yes, its compact all-in-one design makes it ideal for checkout counters with limited space.

What are the advantages of an all-in-one POS terminal?

All-in-one POS terminals reduce counter clutter, simplify installation, improve system reliability, and enhance checkout efficiency.

Can the RiVar-1501 handle high customer traffic environments?

Yes, it is suitable for high-traffic retail and hospitality environments that require fast and stable transaction processing.

Why should businesses use a dedicated POS terminal like the RiVar-1501?

Dedicated POS terminals provide optimized performance, reliable peripheral integration, and efficient transaction handling compared to general-purpose systems.

TSL Automation Solutions – Avalue RiVar-1501 POS...

Product Description

Explore the Avalue RiVar-1501 POS Terminal at TSL Automation Solutions – a high-performance, fanless retail solution featuring a 15-inch PCAP touch display, Intel® processor options, rich I/O connectivity, and customizable peripherals.

Designed for retail, hospitality, self-service kiosks, and commercial applications, this sleek and durable POS system delivers exceptional reliability and a smooth user experience in demanding environments.

Technical Specifications

System Information

Processor

Intel® Celeron® Processor J3455

1 x 204-pin DDR3L SODIMM socket up to 8GB DDR3L 1600MTs SDRAM

I/O Chipset

EC ITE IT8528E

SBC

Intel® Celeron® Apollo Lake Platform

Other

RJ-11 for cash drawer 24V (optional for camera/ NFC/ MSR)

Expansion

1 x M.2 B Key slot for mSATA module 1 x M.2 E Key slot for .2.4/5G WiFi module

Storage

M.2 2242 SATA 32GB (option) 1 x SD card slot

Display

Graphic Chipset

Intel® HD Graphics 500

Audio

Audio Codec

Realtek ALC888S

Audio Interface

2 x 2W

Ethernet

LAN Chipset

1 x RJ45 with Intel® I211AT

Power Requirement

DC Input

+24V

DC Input Connector

Lockable DC Jack

Software Support

OS

Win 10 / Android 8.1

Certification

Certification Information

CE/FCC/UKCA/VCCI : Class A

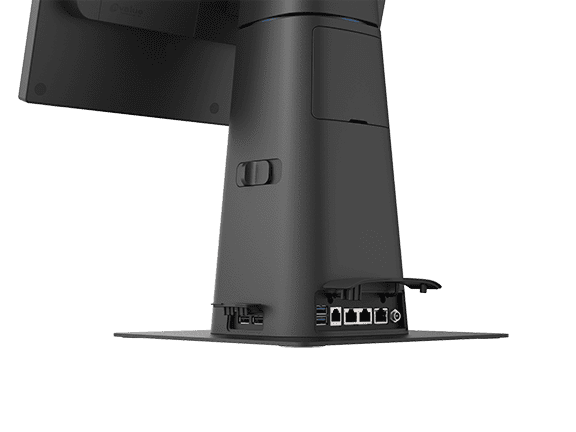

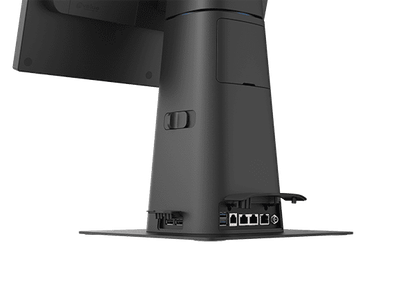

External I/O

USB Port

4 x USB 3.0

Panel

LCD Size

15.6\"

LCD Panel

Main LCD panel: 15.6 1920 x 1080 full HD

2nd LCD panel: 15.6 1920 x 1080 full HD (option)

Display Type

Full HD

Resolution

1920 x 1080

Pixel pitch

0.179 x 0.179

Luminance

300 cd/m2

Contrast ratio

700

Viewing angle

89 (U), 89 (D), 89 (L), 89 (R)

Response time

14ms

Backlight

LED

Touch Type

Projective capacitive

Touch Light Transmission

85%

Touch Controller

USB interface, EETI

I/O

COM Port

2 x COM ports supported all pin 9 supported 5V/12V 1A max output

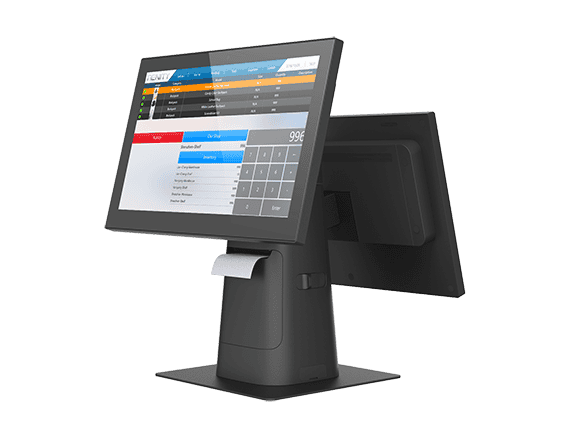

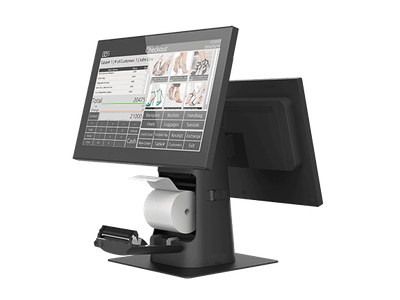

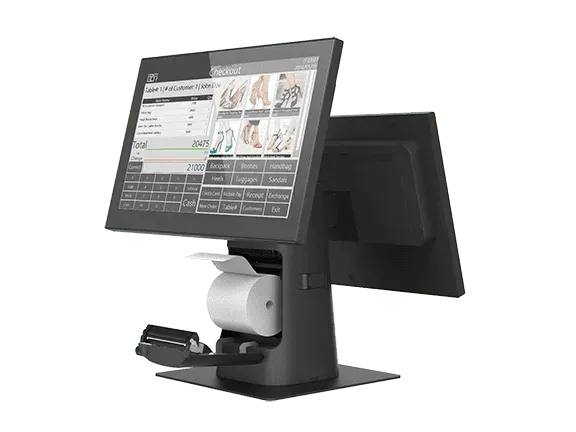

Thermal Printer

Printing Method

SEIKO thermal printer CAPD347D-E

Mechanical & Environmental

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Dimension (W x L x H)

253 x 390 x 431mm

Weight

10 kg (dual display mode)

IP Rating

IP65 for front panel, IP41 for rear

Power Mode

ATX

System Fan

Fanless

Construction - Front

Black/white

Construction - Rear

Black/white

Construction - Front

Black/white

Construction

Plastic

Component

Adapter

24V DC in 60W or 120W (printer SKU)

Ordering Information

RIVAR-1501-A1400R

15.6\"/1920x1080/PCT/4G RAM/130W Adapter/5 USB/1 RJ45/1 SD Slot/Stand/2 Powered COM/1 RJ11 for Cash Drawer/Thermal Printer

RIVAR-1501-A1800R

15.6\"/1920x1080/PCT/4G RAM/130W Adapter/5 USB/1 RJ45/1 SD Slot/Stand/2 Powered COM/1 RJ11 for Cash Drawer/Thermal Printer/15.6\

PCT 2nd display

ACC-RIVAR-MSR-01R

Magstripe Card Reader for RIVAR-1501

EU Power Cord E1702031000R

US Power Cord E1702031833R

JP Power Cord E1702031834R

UK Power Cord E170P060380R

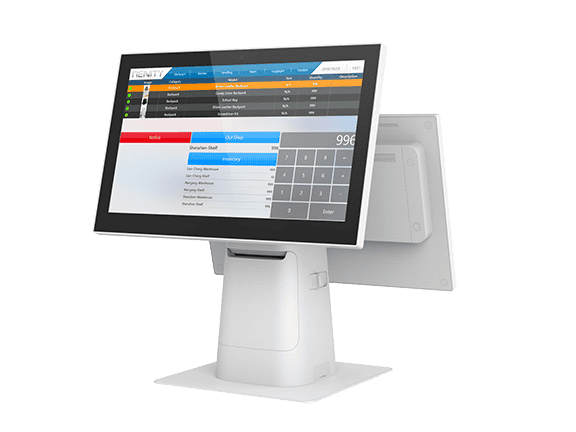

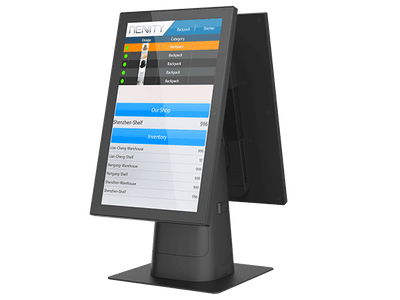

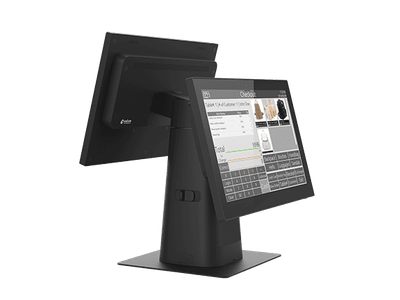

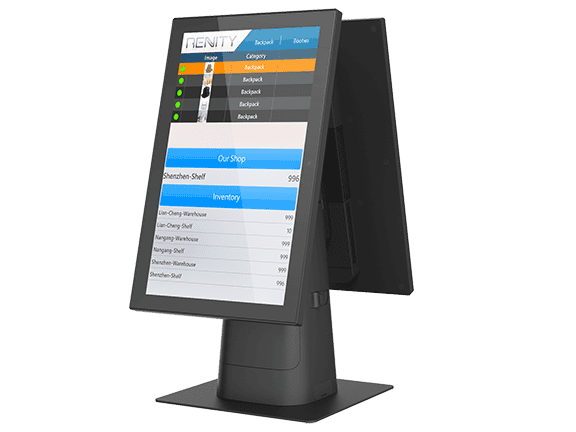

What is RiVar-1501?

The RiVar-1501 is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for pos-terminal applications. Explore the Avalue RiVar-1501 POS Terminal at TSL Automation Solutions – a high-performance, fanless retail solution featuring a 15-inch PCAP touch display, Intel® processor options, rich I/O connectivity, and customizable peripherals. Designed for retail, hospitality, self-service kiosks, and commercial applications, this sleek and durable POS system delivers exceptional reliability and a smooth user experience in demanding environments.

Key Features & Benefits

Intel® Celeron® Processor J3455
IP65 for panel, IP41 for back

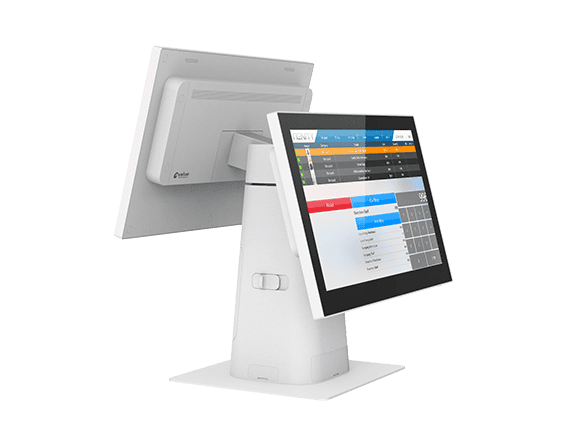

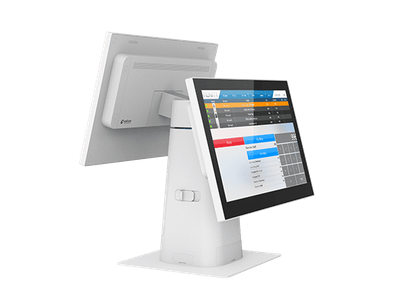

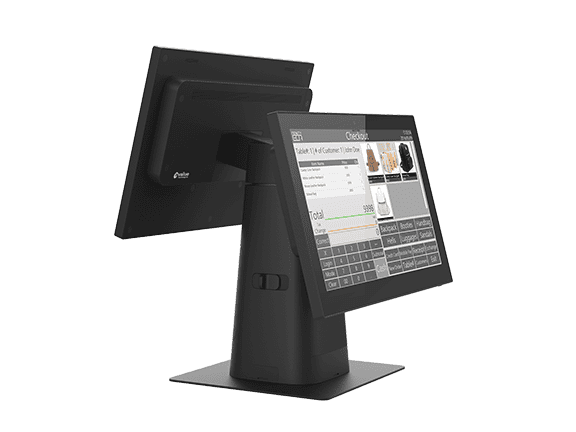

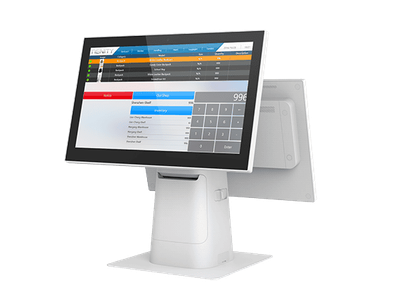

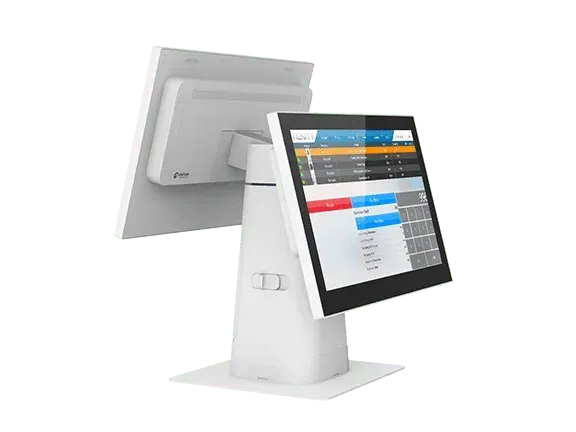

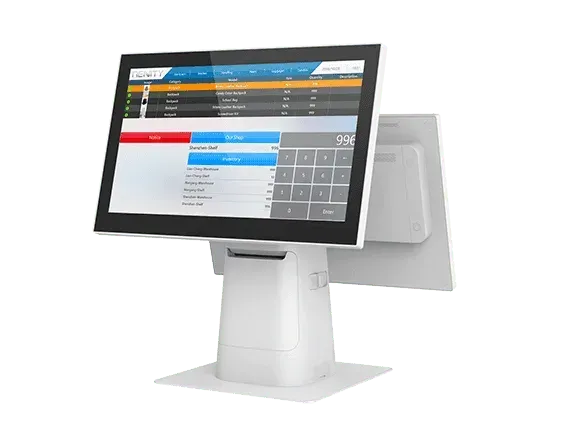

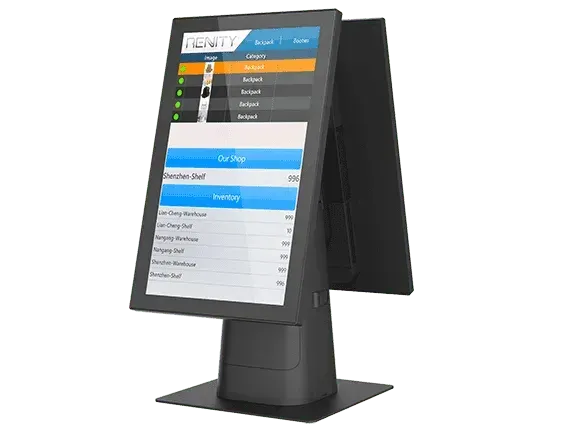

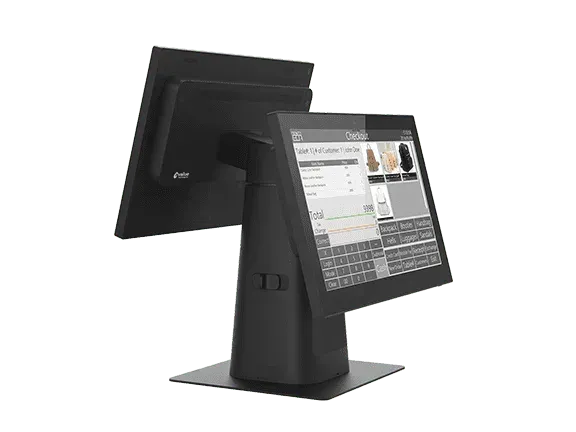

Dual display
1 x Gigabit Ethernet
2 x M.2 slot for (WiFi/mSATA)

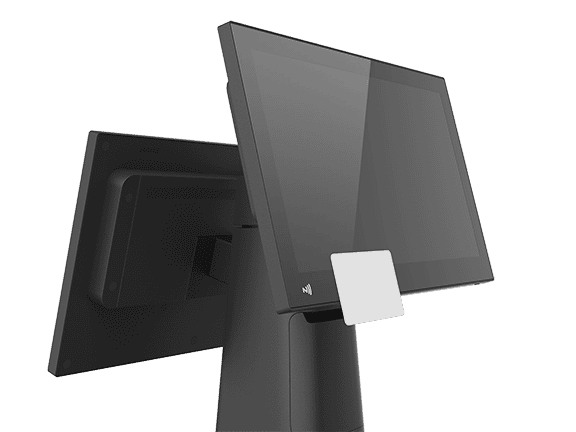

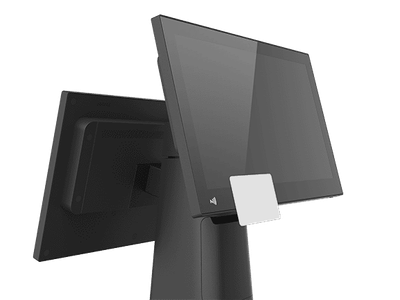

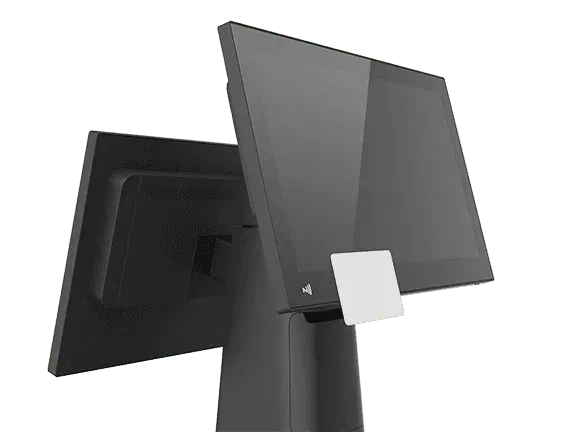

Optional for MSR / camera / RFID

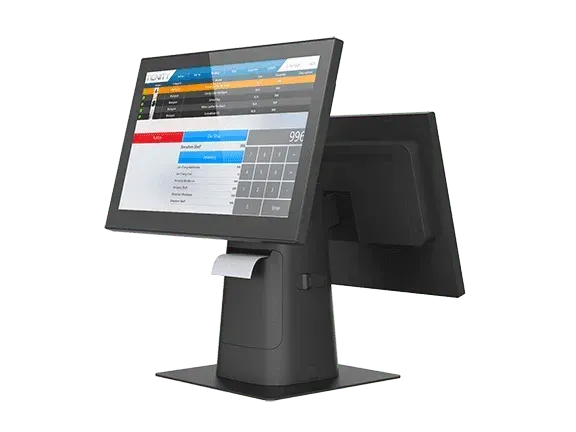

Optional for stand / thermal printer / 2nd display

Applications & Use Cases

The RiVar-1501 is ideal for various industrial automation applications:

Harsh industrial environments requiring dust and water protection
Wireless connectivity and remote monitoring applications
High-performance computing and data processing tasks
Networked industrial systems and data communication
Interactive kiosk and self-service terminals
Visual monitoring and data display systems
Industrial control and monitoring systems
Factory automation and process control
