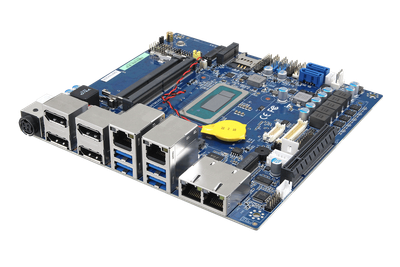

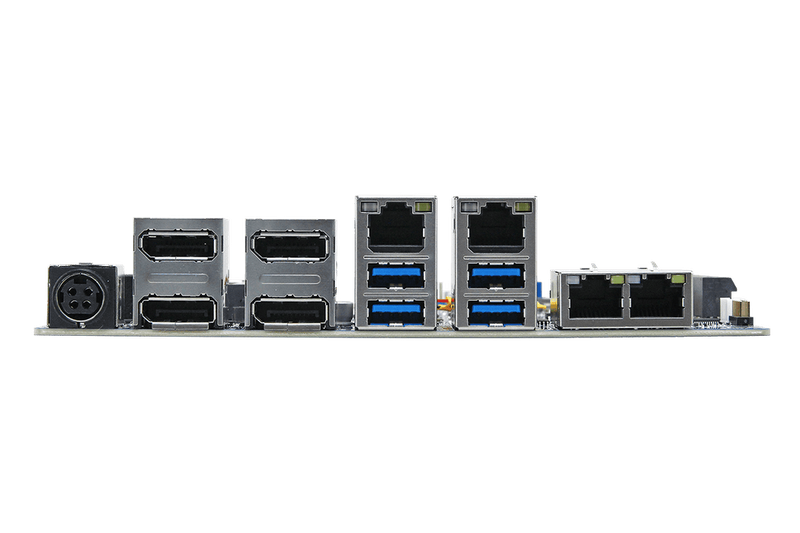

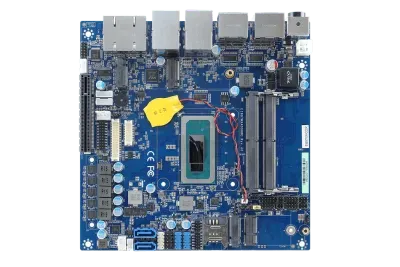

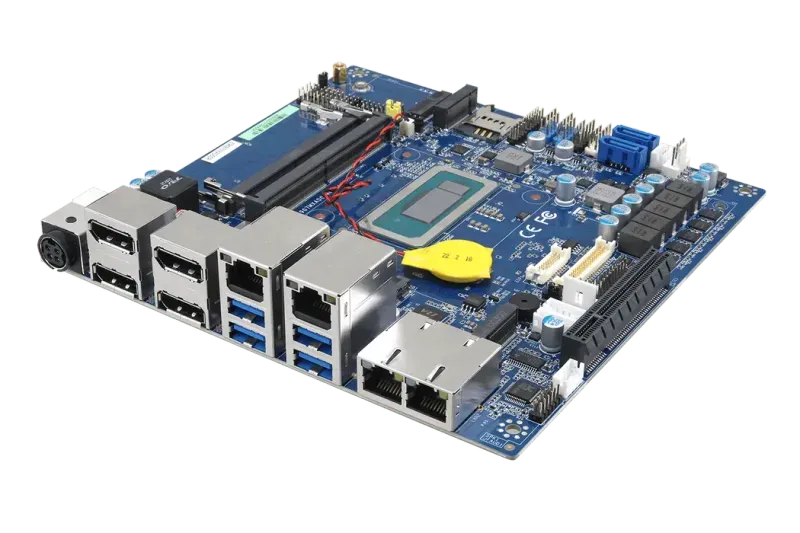

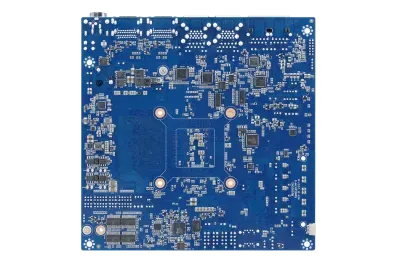

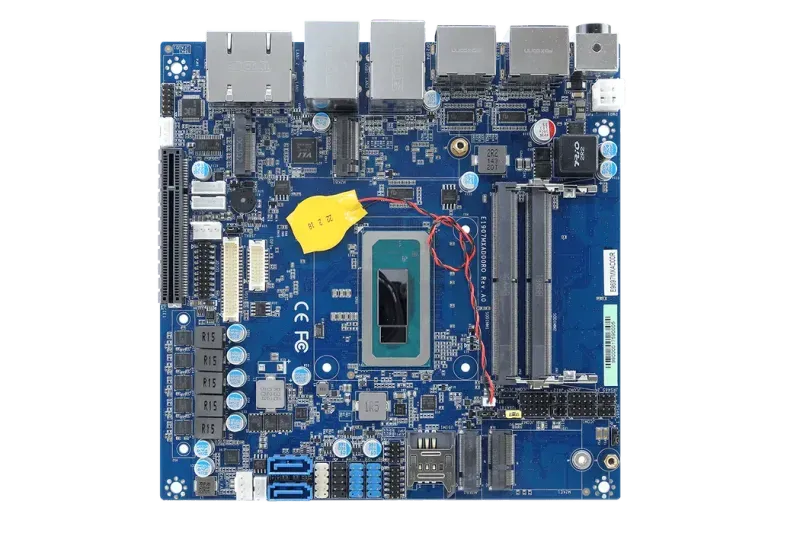

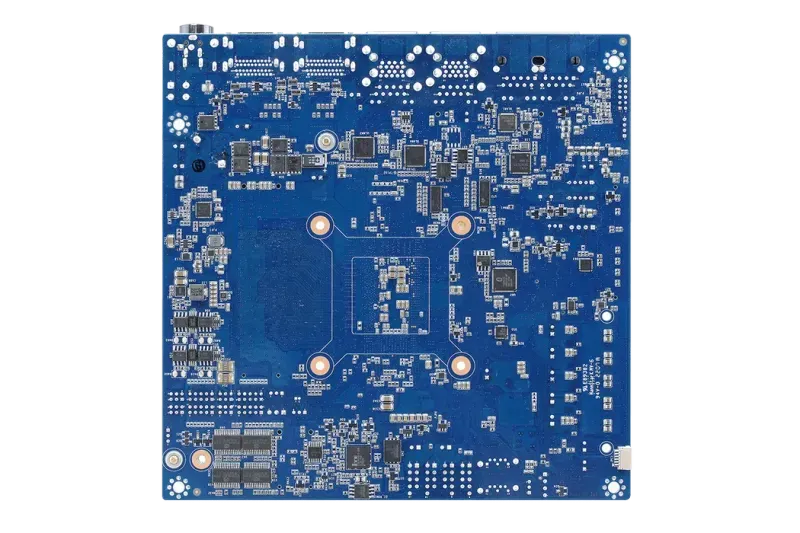

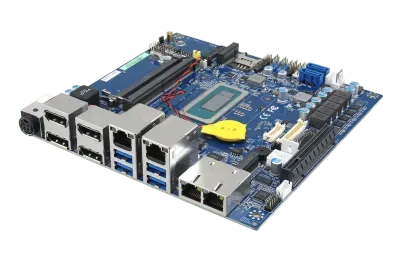

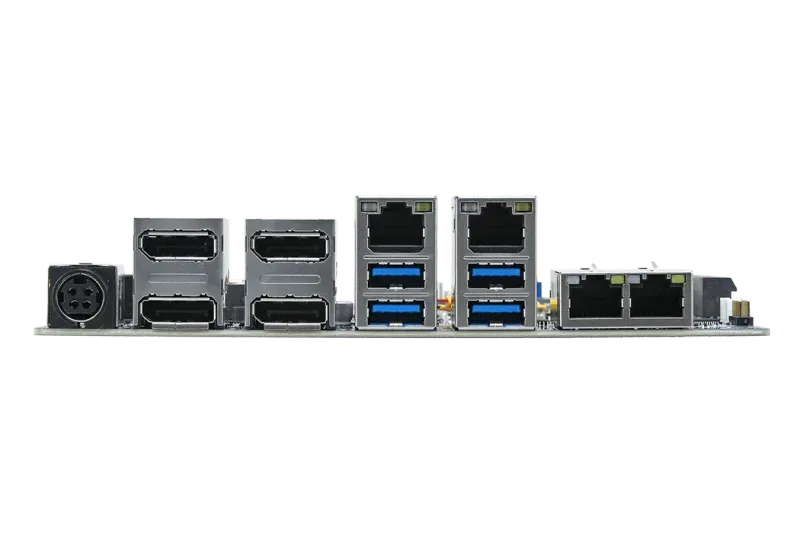

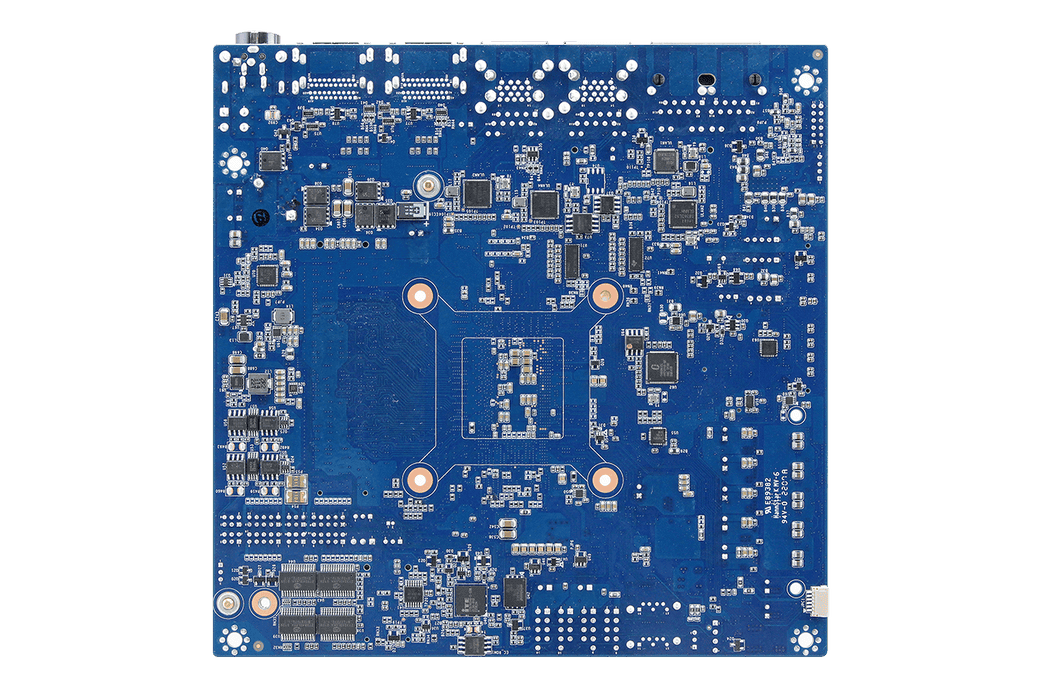

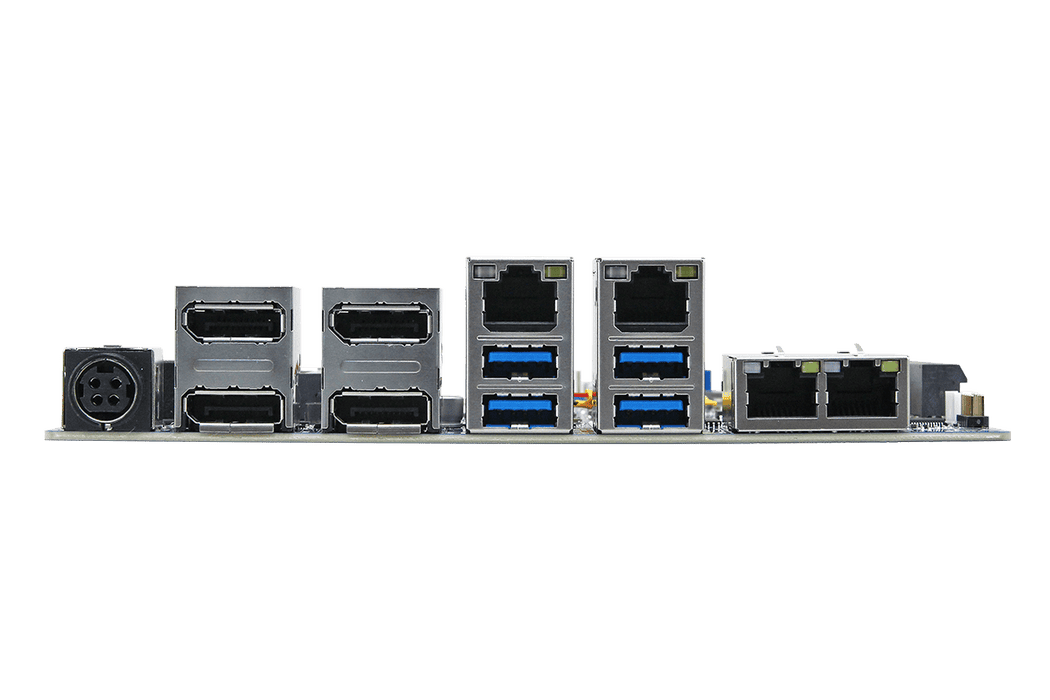

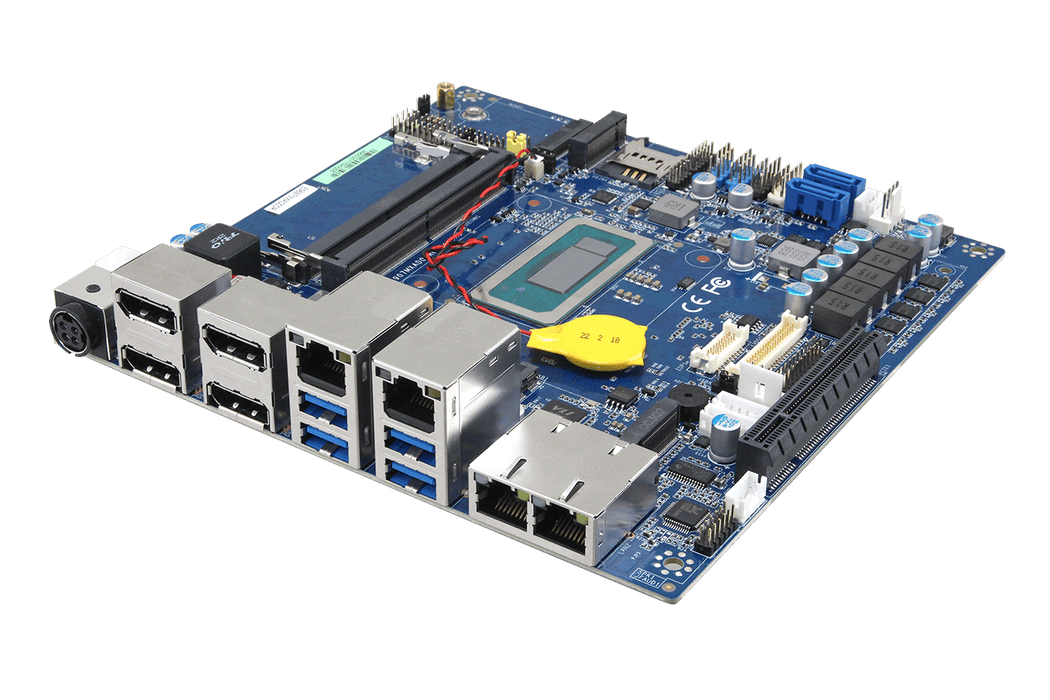

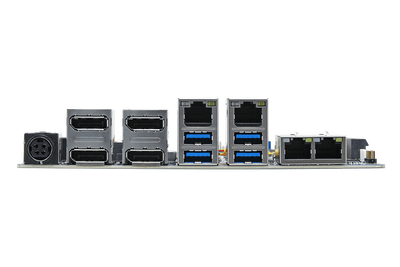

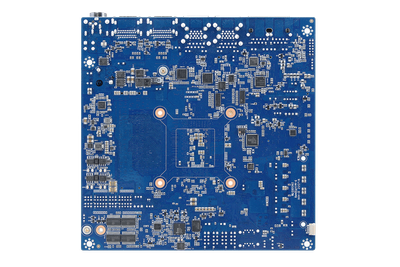

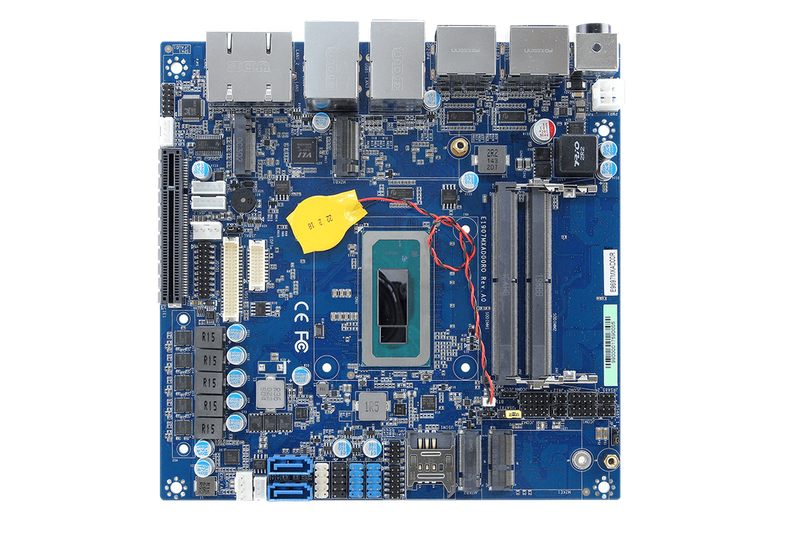

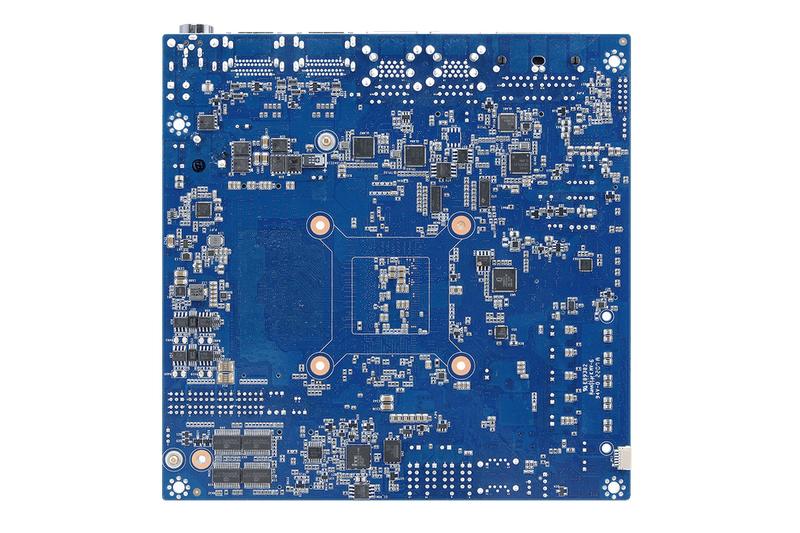

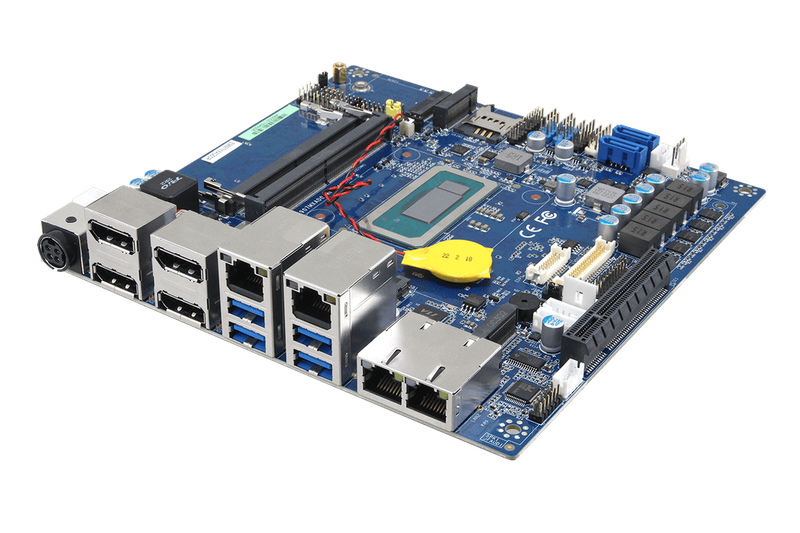

EMX-ADLP

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Onboard 12th Gen. Intel® Core™ SoC i7/i5/i3 & Celeron® BGA Processor
2 x 262-pin DDR5 4800 MHz SO-DIMM Supports Up to 64GB (Non ECC Only)
2 x DP++, 2 x DP, 1 x LVDS, 1 x eDP (Maximum: 6 for Quadruple Independent Displays)
3 x Intel® I226LM 2.5 Gigabit Ethernet, 1 x Intel® I219LM Gigabit Ethernet PHY
1 x M.2 Type M, 2 x M.2 Type B, 1 x M.2 Type E
2 x USB 3.0 Gen2, 2 x USB 3.0 Gen1, 4 x USB 2.0
6 x COM
DC in +12V~24V

Product Description

The Avalue EMX-ADLP is a Mini-ITX motherboard designed for industrial and embedded applications. It supports onboard 12th Gen Intel® Core™ i7/i5/i3 and Celeron® SoC processors (TDP: 12–45W) and accommodates up to 64GB DDR5 4800MHz SO-DIMM memory.

Key features include multiple display outputs (2 x DP++, 2 x DP, 1 x LVDS, 1 x eDP), quad Intel® Ethernet ports (3 x I225LM/I226LM 2.5GbE, 1 x I219LM GbE), multiple USB ports (4 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 2 x USB 2.0), serial interfaces (4 x RS-232, 2 x RS-232/422/485), GPIOs, and expansion options through PCIe Gen4 slot, M.2 Type B (3042/3052), M.2 Key E (2230), and M.2 Key M (2280) slots.

With a compact form factor of 170mm x 170mm, wide voltage input range of 12V to 24V DC, and support for Windows and Linux operating systems, the EMX-ADLP offers a robust solution for space-constrained environments.

Technical Specifications

System Information

Processor

Onboard Alder Lake-P 12th Intel® Core™ SoC i7/i5/i3/Celeron Processor (TDP: 15~45W)

H-Series: 25~45W, P-Series: 20~28W, U-Series: 12~15W

System Memory

2 x 262-Pin DDR5 4800MHz SO-DIMM Socket Supports Up to 64GB (non ECC only)

I/O Chipset

EC iTE IT5782VG

Watchdog Timer

H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU Temperature Monitoring

Voltage Monitoring

CPU Fan Speed Control

TPM

Onboard nuvoTon NPCT754AABYX support TPM 2.0

Board

Mini ITX

Display

Multiple Display

2 x DP++/2 x DP/1 x LVDS/1 x eDP

(Maximum: 6 for Quadruple Independent Displays)

Graphic Chipset

Intel® Iris® Xe Graphics (For Core i5 & i7)

Intel® UHD Graphics for 12th Gen Intel® Processors (For Core i3 & Celeron)

Spec. & Resolution

DP1+DP3 (DP1.4): Max: 7680 x 4329@60Hz

DP2+DP4 (DP1.4): Max: 7680 x 4329@60Hz

Single DP port (2021/2 Lab test): 5120 x 2160@60Hz, Check Max: 7680 x 4329@60Hz

Intel resolution as below:

2 x DP++ : 1920 x 1080@60Hz

2 x DP: 4096 x 2304@60Hz

LVDS: 1920 x 1080 Dual Channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)

eDP 4096 x 2304@60Hz

*2 x DP++, LVDS, eDP Default (Thin Mini ITX), Optional: DP3 and DP4 for Full Height

(Maximum: 6 for Quadruple Independent Displays)

LVDS

Dual Channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)

1 x eDP

Expansion

1 x M.2 Type B 3042/3052 (with 1 x PCIe x1 (Default), USB2.0, USB 3.2 Gen2 with 1 x SIM Card Slot Support WWAN+GNSS

1 x M.2 Key E 2230 Support Wi-Fi Module and CNVi (1 x PCIe x1 & USB 2.0 Signal)

1 x M.2 Key B 2242 (SATA Signal, Shared with SATA2) Slot Support SSD Storage

1 x M.2 Key M 2280 (PCIe x4) Slot for Storage NVMe SSD

H-series: 1 x PCIe x8 (Gen4) Slot (with Redriver mux (DS160PR421 3.2US x1 & DS160PR412 3.2US x1)

P/U-series: 1 x PCIe x4 Gen 4 Slot (with Redriver mux (DS160PR421 3.2US x1 & DS160PR412 3.2US x1)

Audio

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Support Line-out & Mic-in & Front Audio Pin-header

Audio Amplifier

2 x 6W 8Ω Amplifier

Ethernet

LAN Chipset

3 x Intel® i226LM 2.5 Gigabit Ethernet (LAN2~4)

1 x Intel® i219LM Gigabit Ethernet PHY

*LAN3~4 for Full height

Ethernet Interface

10/100/1000 Base-Tx GbE compatible & 2.5 Gigabit Ethernet

LAN Port

4 x RJ-45

Software Support

OS

Windows 11, Linux

Certification

Certification Information

CE, FCC, RoHS Compliant

I/O

USB

2 x USB 3.0 Gen2

2 x USB 3.0 Gen1

4 x USB 2.0

COM Port

4 x RS232 (JCOM1 ~ JCOM4)

2 x RS22/485

SATA

2 x SATA III

1 x SATA Power

DIO

1 x 16-bit GPIO

Mechanical & Environmental

Operating Temp.

0~60C (32~140°F) w/HDD/SSD, ambient with 0.5 m/s Air flow

Storage Temp.

-40 ~ 75°C (-40 ~ 167°F)

Dimension (L x W)

6.7" x 6.7" (170mm x 170mm)

Weight

0.88lbs (0.4Kgs)

Operating Humidity

40°C at 95% relative humidity, non-condensing

Power Mode

AT/ATX (Default Setting: ATX)

Power Requirement

DC in +12V~24V

Ordering Information

EMX-ADLP-U15-A1R (i3-1215UE, 15W, Thin, 2DP/2LAN)

EMX-ADLP-U45-A1R (i5-1245UE, 15W, Thin, 2DP/2LAN)

EMX-ADLP-P20-A1R (i3-1220PE, 28W, Full, 4DP/4LAN)

Intel® 12th Gen. Core™ SoC i5/i3 & Celeron®BGA Processor Mini ITX

Motherboard

What is EMX-ADLP?

The EMX-ADLP is a industrial & embedded motherboard manufactured by Avalue, designed specifically for mini-itx applications. The Avalue EMX-ADLP is a Mini-ITX motherboard designed for industrial and embedded applications. It supports onboard 12th Gen Intel® Core™ i7/i5/i3 and Celeron® SoC processors (TDP: 12–45W) and accommodates up to 64GB DDR5 4800MHz SO-DIMM memory. Key features include multiple display outputs (2 x DP++, 2 x DP, 1 x LVDS, 1 x eDP), quad Intel® Ethernet ports (3 x I225LM/I226LM 2.5GbE, 1 x I219LM GbE), multiple USB ports (4 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 2 x USB 2.0), serial interfaces (4 x RS-232, 2 x RS-232/422/485), GPIOs, and expansion options through PCIe Gen4 slot, M.2 Type B (3042/3052), M.2 Key E (2230), and M.2 Key M (2280) slots. With a compact form factor of 170mm x 170mm, wide voltage input range of 12V to 24V DC, and support for Windows and Linux operating systems, the EMX-ADLP offers a robust solution for space-constrained environments.
